Name: Dry Electrode Research 2 Servo motor Battery Electrode Calendering Roll Press Machine
Brand: WUHAN GRACE NEW ENERGY CO., LTD.
SKU: GRS-JS200DL
Availability: InStock

Betaalmethode:	Western Union, T/T

Detailsinformatie

Productomschrijving

Gedetailleerde informatie

Place of Origin

China

Merknaam

GERUISI

Certificering

Model Number

GRS-JS200DL

Roller cylindricity:

≤±2um

Rolling thickness:

0~ 2mm gap adjustable

Tablet width:

0 ~300mm

Application:

battery electrode roll press

motors:

Two motors operate independently to achieve independent speed adjustment of two rollers

Productomschrijving

Dry Electrode Research 2 Seveo Battery Electrode Calendering Roll Press Machine

Product Description

It is mainly suitable for the electric rolling of battery materials in the laboratory, a small amount of precious metal materials such as gold and silver, and non-ferrous materials such as copper and aluminum at a certain thermal temperature. The battery roll press thickness is adjustable and the operation is simple. It is particularly suitable for thinning and increasing the density of lithium battery plates, a clean energy material.

Features:

Heating and rolling, the upper and lower rolls are heated separately in sections. The temperature is adjustable by a temperature controller and displayed digitally.
It can be operated with or without heating.
The rolls have high hardness and are treated with hard chromium plating on the surface, with a hardness of up to HRC62 and anti-rust.
The tabletting gap is adjusted by using inclined blocks, which has good self-locking performance and high adjustment accuracy.
The rolling accuracy is high, and the cylindricity of the rollers is ≤±2um.
Vertical design, facilitating the feeding and rolling of sheet and strip materials.
The roller pressing is achieved through gear meshing rotation.
The thickness and speed of the tablet pressing can be adjusted, and the appearance is exquisite and beautiful.
Electric rolling, forming automation, can be operated in both forward and reverse directions.
It is small in size, easy to operate and flexible and quick to use.
The two motors operate independently to achieve independent adjustment of the rotational speed of the two rollers.

Specification

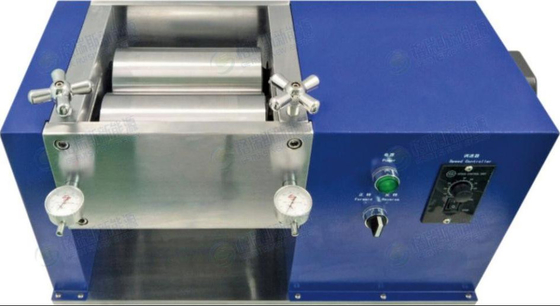

Dry Electrode Research 2 Servo motor Battery Electrode Calendering Roll Press Machine 0

Battery Rolling press machine operation: Place the material between the two rolls, press the start button, the motor starts, driving the gears to mesh and rotate the two rolls to achieve double-roll rolling.

Battery Rolling press machine gap adjustment: The tabletting gap is adjusted by using inclined blocks, which have good self-locking properties. The gap can be adjusted by rotating the left and right adjustment handwheels. The dial indicator value is displayed, which is intuitive and convenient. The two rollers must not be operated in close contact to avoid damaging the roller surface.

Battery Roll press machine Temperature adjustment: The green number displayed on the temperature controller indicates the current set temperature value, and the red number indicates the current detected temperature value. Press the "Up" and "down" keys to adjust the set temperature value.

Technical parameters

Roller diameter: 2-Φ96mm

Roller hardness: HRC62

Roller surface finish: 0.4 or above

The cylindricity of the roller is ≤±2um.

Rolling thickness: 0-2mm gap adjustable

Roller Width: 0-200mm

Roll placement: Place Horizontal

The thickness of the tablet, the speed and the heating temperature can be adjusted.

Rolling temperature: Adjustable from room temperature to 130℃, with digital display value

Operating mode: Electric

Voltage and frequency: AC220V/50Hz

Power: 2000W

Feeding speed: 0-40mm/s, adjustable speed

* Dimensions: Length 705* Width 295* height 365mm

Equipment weight: 85KG

Standard configuration: One set of Allen wrenches, two dial indicators, and one feeler gauge

Maintenance methods and precautions

1.Before each work session, carefully wipe the surfaces of the two rolls with a soft cloth dampened in alcohol to keep them clean.

2. Lubricate the moving parts of the gears with oil to ensure smooth movement.

3. Do not use air pumps for purging to prevent dust from entering the bearings and affecting the usage accuracy.

4. If the roller is not used for a long time, wipe the surface clean and spray anti-rust oil on it to protect the roller surface from erosion.

5. Regularly inspect the screws, nuts, pins and other fasteners of all parts of the machine to prevent loosening and eliminate machine quality accidents and personal accidents.

When adjusting the rolling gap, the small hands on both sides should be adjusted evenly to avoid damaging other parts. After adjustment, the dial indicator can be removed to prevent accidental damage during production and use.
